Part 3 : Documentation

Documentation supports open source and versioning

Keep track with one’s own work

Understand others’ work

Internal communication

External communication

Identify source code/software

Identify code/software producers (myself or fellow coders)

Share/Reuse code

Contribute/Get contributions

Cite/Be cited

Credit/Be credited

Warning

Sharing and reusing IS NOT an invitation to plagiarism.

You still have to cite, and use the code according to the license

Documentation also supports

Software indexing/retrieval in :

software platforms
repositories
libraries

Software long term preservation/archiving

What you want to document

What you will mention

Description of the source code
Description of the software

Including * Code explanations

Usage
Author
Contact infos
UPIds (Unique Persistent IDentifiers)
License
…

Box: Popular Open Source Licenses

Choose a licence and stick to it.

It can be very painful to change a licence (need to ask all the contributors).

Here is the list of Open Source Licences as suggested by the TTO https://tto.epfl.ch/scientists/software/choose_the_license/open_source_licenses/

MIT

Short
Permissive
No warranty
http://opensource.org/licenses/MIT

BSD

Short
Permissive
Trademarks prohibited
No warranty
http://opensource.org/licenses/BSD-3-Clause
http://opensource.org/licenses/BSD-2-Clause

Apache 2.0

Permissive
Patents allowed
No warranty
http://opensource.org/licenses/Apache-2.0

GPL

Copyleft license
Patents allowed
Viral
http://opensource.org/licenses/gpl-3.0

LGPL

Sharing libraries under the same terms
Mix of different licenses allowed
http://opensource.org/licenses/LGPL-3.0

AGPL

Strong copyleft
Patents allowed
Viral
http://opensource.org/licenses/AGPL-3.0

Challenges

Dependencies documentation management

Various ways to code documentation

embedded documentation
supported documentation with a README file
supported documentation with metadata
documentation AND publication with a software paper

Embedded documentation

comments & annotations
documentation generation

A python Example

  """@package docstring
  Documentation for this module.
  More details.
  """

  def func():
      """Documentation for a function.
      More details.
      """
      pass

  class PyClass:
      """Documentation for a class.
      More details.
      """
      def __init__(self):
          """The constructor."""
          self._memVar = 0;

      def PyMethod(self):
          """Documentation for a method."""
          pass

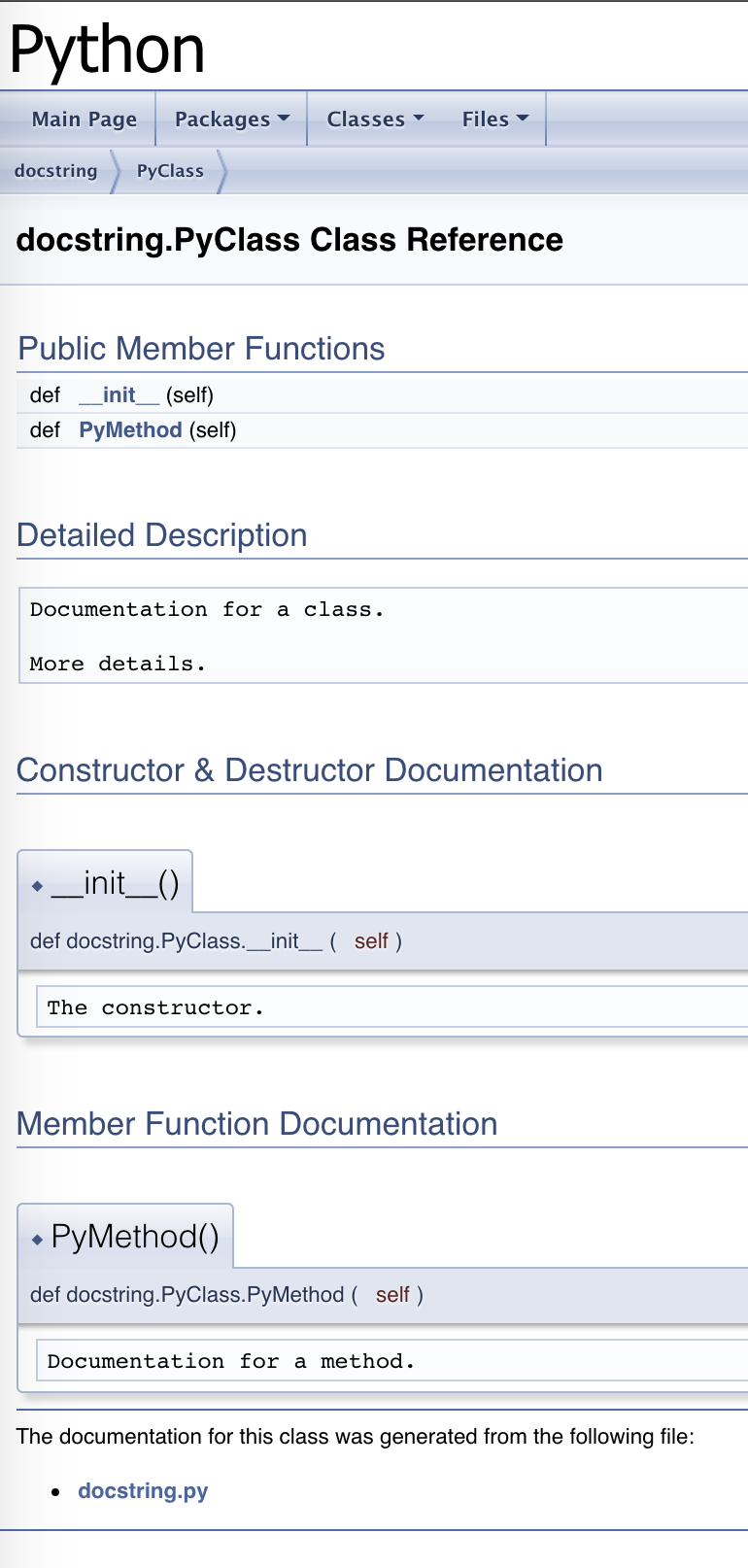

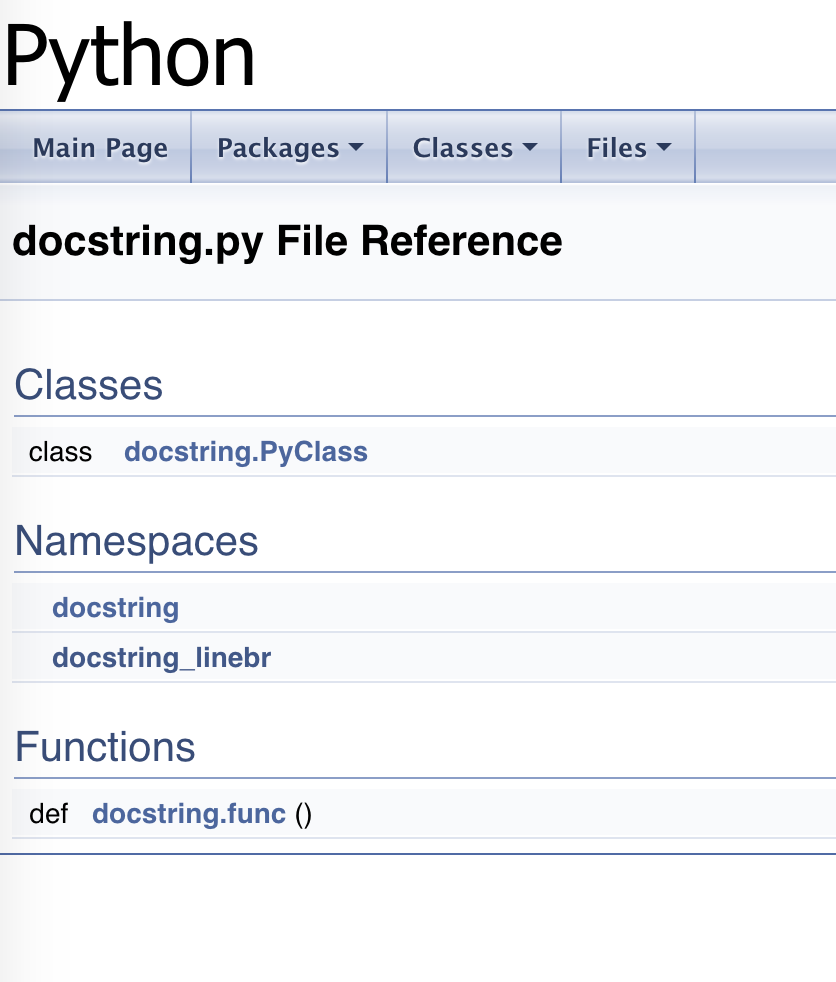

Doxygen Documentation

ReadtheDocs

Supported documentation with a README file

README file shall include

  $project
  ========

  $project will solve your problem of where to start with documentation,
  by providing a basic explanation of how to do it easily.

  Look how easy it is to use:

      import project
      # Get your stuff done
      project.do_stuff()

  Features
  --------

  - Be awesome
  - Make things faster

  Installation
  --------

  Install $project by running:

      install project

  Contribute
  --------
  - Issue Tracker: github.com/$project/$project/issues
  - Source Code: github.com/$project/$project

  Support
  --------

  If you are having issues, please let us know.
  We have a mailing list located at: project@google-groups.com

  License
  --------

  The project is licensed under the BSD license.

Supported documentation with metadata

DOAP (Description Of A Project) description files

CITATION files

(2 examples: CFF and codemeta)

EXAMPLE 1 : Citation File Format (CFF) file (yaml)

cff-version: 1.0.3
message: If you use this software, please cite it as below.
authors:
  - family-names: Masson
    given-names: Antoine
    orcid: https://orcid.org/0000-0002-7993-5698
    affiliation: Ecole Polytechnique Fédérale de Lausanne, Library
    email: antoine.masson@epfl.ch
title: Cost Calculator
version: beta 2.1
doi: 10.5281/zenodo.1469034
date-released: 2018-10-08
repository-code: https://c4science.ch/source/costcalc/repository/master/
url: https://rdmepfl.github.io/costcalc/
keywords:
    - research data
    - storage
    - cost estimate
    - planning
abstract: A dynamic online tool for calculating the cost of research data storage services. It's highly modular and can be adapted for all kind of application. The system is really easy to install as it uses only opensource javascript libraries.
license: GPL-3.0-only

EXAMPLE 2 : codemeta file (json-ld)

{
    "@context": "https://doi.org/10.5063/SCHEMA/CODEMETA-1.0",
    "@type": "Code",
    "author": [
        {
            "@type": "Person",
            "name": "Antoine Masson",
            "@id": "https://orcid.org/0000-0002-7993-5698",
            "affiliation": "Ecole Polytechnique Fédérale de Lausanne, Library",
            "email": "antoine.masson@epfl.ch"
        }
    ],
    "name": "Cost Calculator",
    "softwareVersion": "beta 2.1",
    "identifier": "10.5281/zenodo.1469034",
    "datePublished": "2018-10-08",
    "codeRepository": "https://c4science.ch/source/costcalc/repository/master/",
    "URL": "https://rdmepfl.github.io/costcalc/",
    "programmingLanguage": "javascript",
    "keywords": "research data, storage, cost estimate, planning",
    "description": "A dynamic online tool for calculating the cost of research data storage services. It's highly modular and can be adapted for all kind of application. The system is really easy to install as it uses only opensource javascript libraries.",
    "license": "GPL-3.0-only"
}

Repository metadata

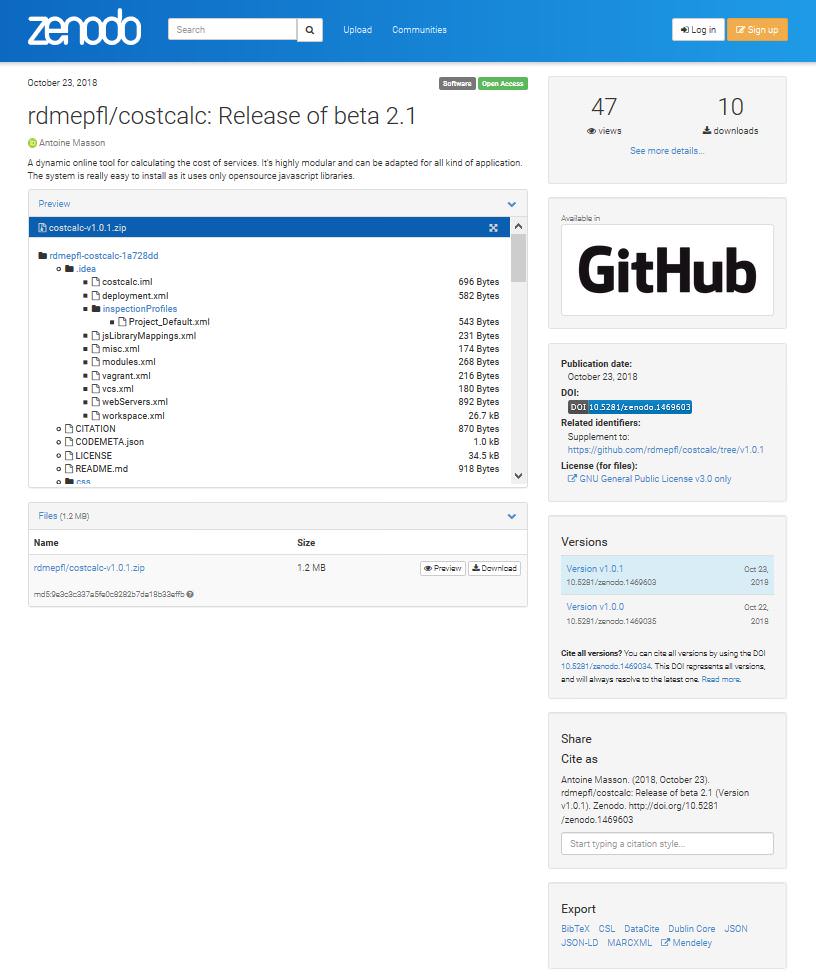

EXAMPLE 3 : Zenodo repository with doi attribution

http://doi.org/10.5281/zenodo.1469603

zenodo

Software paper

documentation AND publication

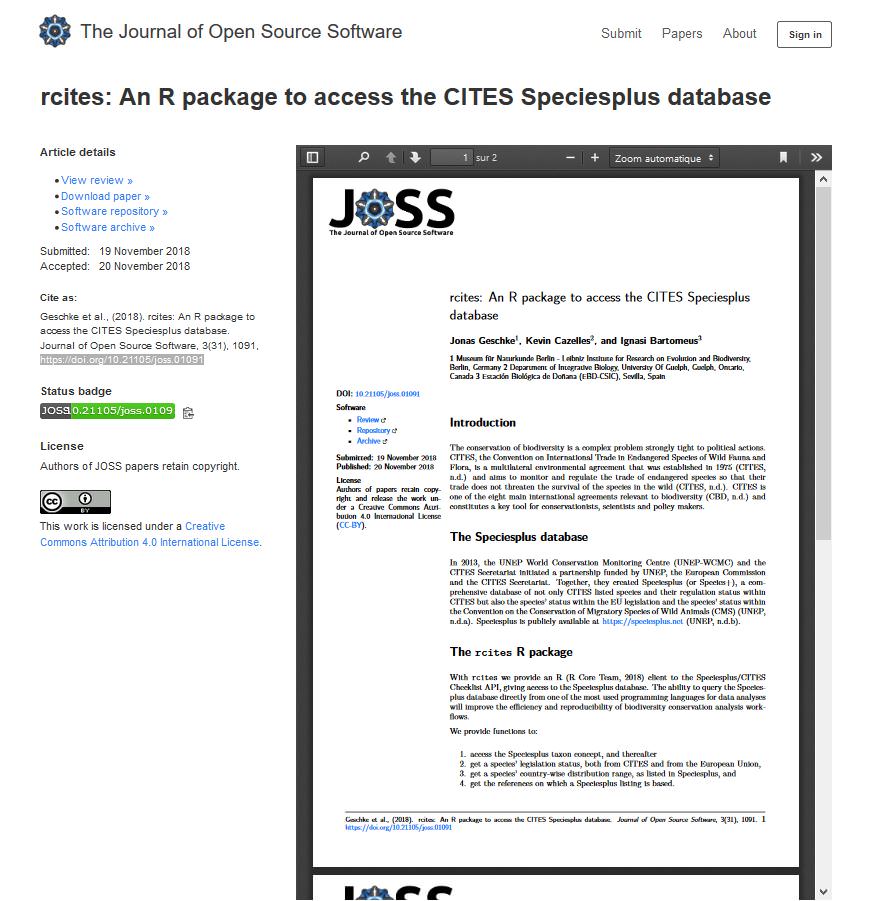

EXAMPLE 1 : Journal of Open Source Software (JOSS)

https://doi.org/10.21105/joss.01091

joss

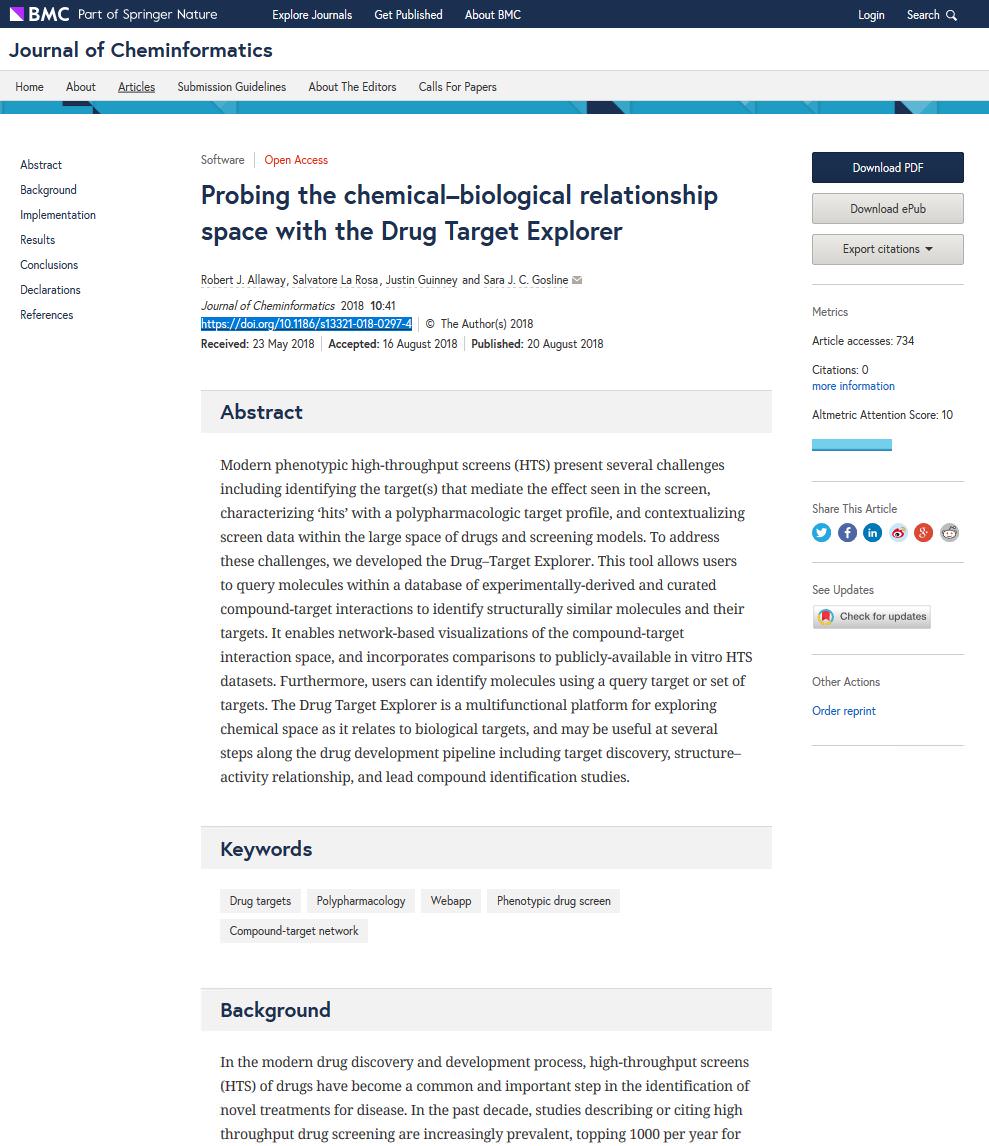

EXAMPLE 2 : Journal of Cheminformatics

https://doi.org/10.1186/s13321-018-0297-4

joc

A few facts and figures

A quick scoping search in GitHub showed:

several thousand mentions of DOAP files,

a few hundred mentions of codemeta files,

a few dozens of cff files…

58300 DOIs for software (May 2018) to compare with

175 million DOI names in the world (July 2018)

Dozens of journals dedicated to scientific software

Focus on metrics

Software and source code developers as full scientific contributors

Metrics for acknowledgment

Metrics for data lead to metrics for code

Metrics for evaluation purpose

Is code/software “just data”?

For citation purpose, code/software is clearly not “just data”.

The topic of metrics for code is still new, gaining attention, fostering efforts such as FORCE11 working group.

Metrics for code:

traditional scientometrics

newer altmetrics

Defining metrics for code is

a work in progress

… and controversial

Food for thought

Remember

comments, annotations, doc generation
README
DOAP
metadata (CFF, codemeta)
software papers

Can you relate?

Stay tuned

Code plagiarism
Licenses
Dependencies documentation management
Metrics for code
